Mink Bürsten, August Mink GmbH & Co. KG

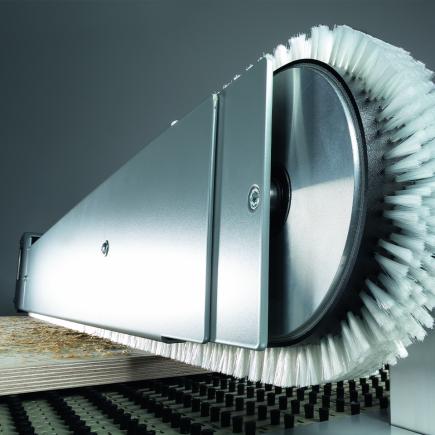

Mink Cross-Cleaning-System

The Mink Cross-Cleaning-System was developed to thoroughly remove loose particles from surfaces. The linearly arranged belt brushes reliably clean product surfaces crosswise to the conveying direction and are quickly replaceable. The modular system can be individually adjusted to the respective application. The cleaning unit consists of a torsionfree carrier rail on which the belt brush can be mounted in various different options, an electric drive, a cleaning unit for the brush as well as an extraction hood. Thanks to the low height of the system, installation and removal, even on existing machines, is very simple. Product surfaces can be cleaned on one or both sides in working widths from 600 to 3,000 mm in a grid of 100 mm. In order to ensure a thorough cleaning performance during the entire work process, the belt brush is continuously cleaned in the deflection area.

Conventional applications: Cleaning

Advantages:

Efficient transverse cleaning of even the tiniest particles while being gentle to sensitive surfaces
Various bristle materials to suit your requirements
Continuous cleaning of bristles in the deflection area
One- or two-sided cleaning of product surfaces possible
Excellent cleaning effect even at low contact pressure

14.07.99 Special surface treatment systems - other

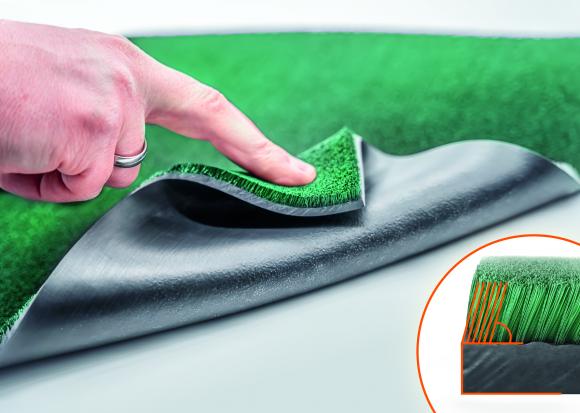

Mink Slide-Brush

With its unique design and flexible bristles, the Mink Slide-Brush for vibratory conveyors offers the solution for smooth parts transport. Small parts such as screws or nuts are conveyed to their final position by vibrations via the bristle tips. Inclined bristles increase the conveying capacity and speed by a factor of three and reduce operating costs. Benefit from maximum adaptability in your system, durability and an impressive noise reduction of up to 40 %. Optimise your production environment!
Conventional applications: Carrying I Gliding

Your advantages:

Uniform conveying of the parts in different incline directions
No damage to the conveyed goods thanks to soft bristles
Noise reduction of up to 40%
High stability
Improved conveying capacity increases productivity
Triple conveying speed, due to inclined position of the bristles
Highly flexible base material

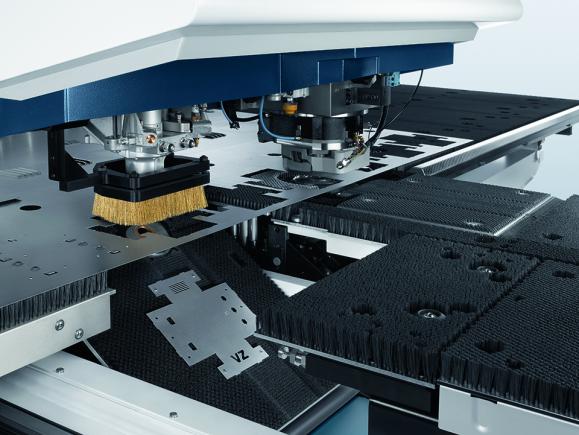

Mink Special brush panels

Mink brush panels reliably prevent damage to surfaces. Sensitive surfaces, e.g. sheet metal, furniture panels or glass, can be easily moved and conveyed on thousands of individual flexible bristle tips.
By angling the bristles there are additional advantages – optimal gliding in the direction of the angled bristles or conversely the bristles can act as a brake and allow a stacking or slowing down of products.
The positioning of the bristle bundles can also be designed to cope with the wide range of demands for each particular application.
Conventional Applications: Carrying I Gliding

Benefits:

Large brush panel work areas to support sheet metal can be created – with contour forms or cut out areas if required.
There are no barriers to size and shape
Special designs are possible by selecting from various brush panel materials or bristle material types

14.01.03.01 Industrial brushes

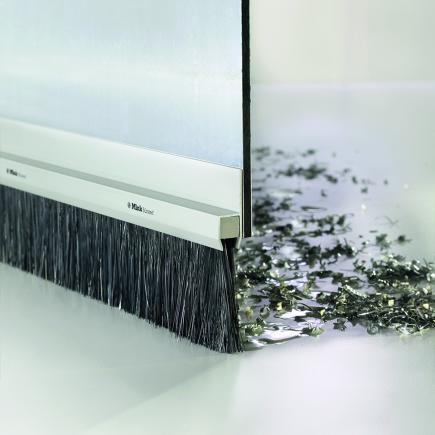

Mink Standard strip brushes

Vast standard item range for fast and convincing results
In practice, we find very often similar problems. That is why we have put together more than 8,000 strip brushes to a short-term deliverable catalogue programme. You will not only benefit from our decades of experience, but also from a shipment ex Germany within 10 working days and compelling price advantages.

Conventional applications: Sealing I Wiping I Guiding

Your benefits:

Unrivalled fast delivery and price advantages
Adapted bristles for higher temperatures
Reliable protection against dirt

14.01.03.01 Industrial brushes
